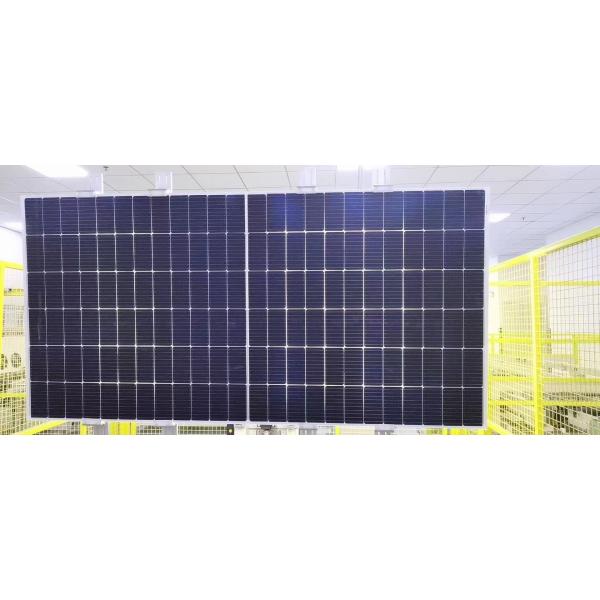

440w 445w 450w 450w Bipv Solar Cell Bifacial Mono Perc Double Glass Module

FSM440~FSM450M72H (440W/445W/450W) 144 Half Cells Bifacial MONO PERC PV Module

Electrical Characteristics under STC (Irradiance 1000W/m², Cell Temperature 25℃, Air Mass 1.5)

Mechanical Characteristics

Product Descriptions

• Typical 144PCS of M6 mono PERC half-cut solar cells in series and parallel connections.
• Dual glasses and mesh backsheet encapsulated with mesh backsheet to get extra power generation from rear.
• 9BB Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
• Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
• Excellent Anti-PID performance guarantee limited power degradation for mass production.
• Advanced glass and cell surface textured design ensure excellent performance in low-light environments (e.g. early morning, dusk and cloud, etc).
• Both 2.0mm thickness glasses for light weight to transport and carry.
• Anti-reflective coated glass to increase module efficiency up to 2%, and improve self cleaning ability.
• Three channels of EL automatic detections, four times visual inspections and power test before packing.
• Full production from automatic equipment and production to eliminate human errors and ensure high quality.
• Intelligent MES system applied on production lines for more efficient production management.
• Certified to withstand: front side max. 5400Pa and rear side max. 2400Pa as per IEC61215 & IEC61730 standards.
• Around 0.55% annual power degradation and 30 years power damping warranty.

Who's FINERGY?

FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off of Delin Group. FINERGY launched 3 international ISO certified workshops in the industrial park which produce both mono and poly crystalline solar panels. With the development of emerging market, we enlarged the capacity of solar panels production to 800MW per year.

Pioneer Applicant of Solar Power

FINERGY workshops were covered by 3.5MW solar power roof system. It continues providing the power consumption of automatic equipment and production lines for solar panels manufacturing.

Achievements of FINERGY

FINERGY has set up sales network in Asia, South America and Europe. The solar panels produced from FINERGY have been exported to more than 40 countries all over the world. It delivers hundreds MW of proven solar performance to residential, commercial and utility scale power plant customers per year, which can get more benefits from our collaborations.

Automatic Production

QC Inspection

FSM450M72HD 450W Bifacial Solar Panels on Solar Fishing System
