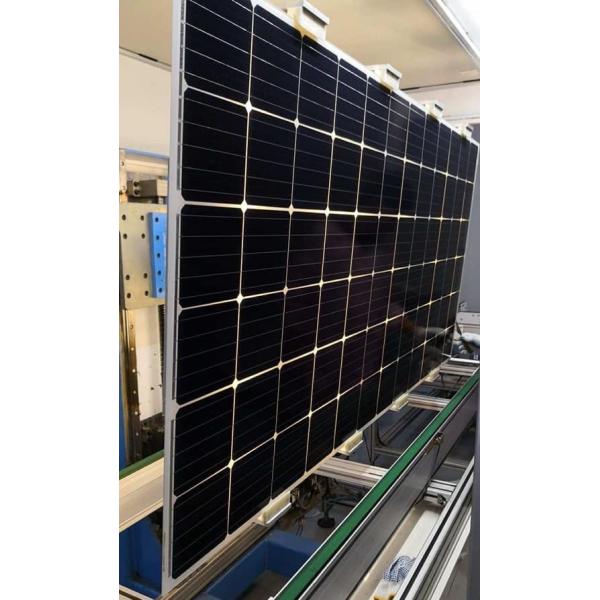

Name: SGS Mono Perc Pv Module 390Wp 395Wp 400Wp 5bb Solar Panel Batteries
Brand: Finergy Tech
Price: 0.19 USD

Brand Name : Finergy Tech

Model Number : 390/395/400W

Certification : CE, IEC61215, IEC61730, TUV, CEC

Place of Origin : CHINA

MOQ : 100PCS

Price : 0.19~0.20 USD per watt

Payment Terms : T/T, L/C

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : Standard Plywood Packing

Cell : MONO PERC from JA Solar 158.75*158.75

Frame : Anodized aluminum alloy

Life time : 30 years

Certificate : CE, IEC, TUV, CEC

Characteristics : Anti LID; Anti PID

OEM/ODM : Available

Contact Now

FSM390~FSM400M72L (390W/395W/400W) Standard Mono PERC PV Module

KEY FEATURES

5 Busbar Solar Cell adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.2%).
Excellent Anti-PID performance guarantee limited power degradation for mass production.
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
High salt mist and ammonia resistance certified by TUV SGS
100% EL inspection and power test before packing
12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type	FSM390M72L	FSM395M72L	FSM400M72L
Maximum Power-Pmax (Wp)	390	395	400
Voltage at Maximum Power-Vmp (V)	41.1	41.4	41.7
Current at Maximum Power-Imp (A)	9.49	9.55	9.60
Open Circuit Voltage-Voc (V)	49.3	49.5	49.8
Short Circuit Voltage-Isc (A)	10.12	10.23	10.36
Module Efficiency-ηm (%)	19.7%	19.9%	20.2%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.40%/℃
Temperature Coefficients of Voc	-0.31%/℃
Temperature Coefficients of Isc	0.04%/℃

Mechanical Characteristics

Quality Control & Inspection

Packing & Delivery

Project Display
